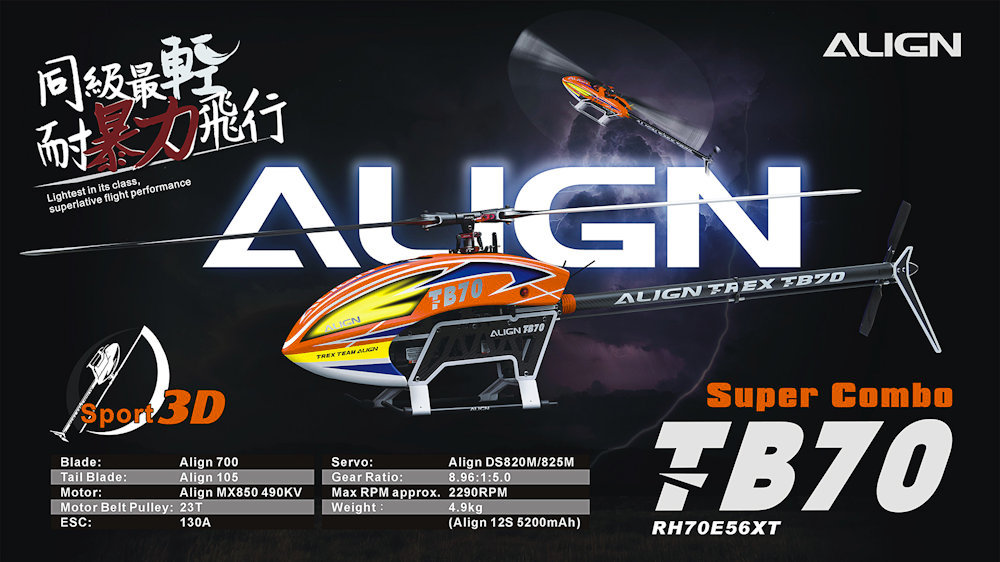

TB70 Build / Setup (Development in Process)
TB70 Build with Duncan Osbourn
ALIGN Factory Professional RC Helicopter Pilot
PART 1:
00:00 Introduction
2:30 Prepare Frames
3:55 Belt Tensioner
8:45 Canopy Mounts
12:53 Upper Frame Parts
19:36 Join Upper Frames
30:29 Prepare Servos
34:41 Cyclic Servo Brackets
36:52 Cyclic Servos
39:26 Tail Servo Bracket
41:33 Tail Servo
43:53 Servo Arms
PART 2:
00:00 Lower Frames
1:25 Undercarriage
10:02 Prepare Motor
16:43 Motor Fitting
21:19 Tail Boom
24:39 Tail Rotor
43:14 Tail Gearbox
PART 3:
00:00 Tail Belt Tension
5:02 Gyro Plate
7:15 Main Rotor
17:47 Swashplate
19:05 Main Gear / Main Shaft
23:02 Head Block
26:18 Linkage Rods / Swashplate Guide
34:37 ESC / Wiring
41:32 Flybarless Unit
43:36 Blades / Batteries
MICROBEAST PLUS
Below are the light settings for the MicroBeast Plus v4.2 and above used by Alan Szabo Jr. and Gale Align.
| PARAMETER MENU (Menu LED Flashing quickly) | LIGHT SETUP | |
|---|---|---|
| A | Swashplate quick trim/ AttitudeControl trim | Used to trim helicopter, best not to adjust if an early beginner. |
| B | Control Style | PRO (RED) |
| C | Speed Fligh Stability | MEDIUM* (RED) |
| D | Rudder Rate Consistency | MEDIUM* (RED |
| E | Stick Deadzone | SMALL* (FLASHING RED) |
| F | Torque Precompensation | HIGH-INV (BLUE) |
| G | Cyclic Response | INCREASED (RED) |
| H | Pitch Boost | OFF* (PURPLE) |
| I | Throttle Response | NORMAL* (PURPLE) |
| J | Slow Rampup Speed | 200 RPS* (RED) |
| K | Fast Rampup Speed | 500 RPS* (RED) |
| L | AttitudeControl Mode | DISABLED* (FLASHING PURPLE) |
| M | (AttitudeControl Pitch) | NOT USED |
